How to install CurBot?

install CurBot |OTER Group | Curbot | Curtain Robot

When you get the CurBot, you need to complete the device assembly first:

1. Check the curtain track and find the hook that matches the track;

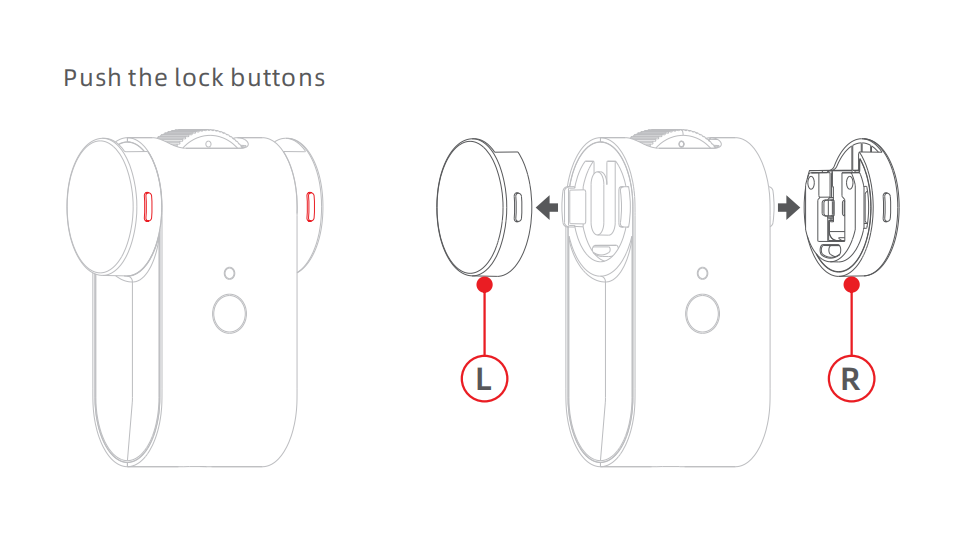

2. Remove the two "ears" of the CurBot from the main body;

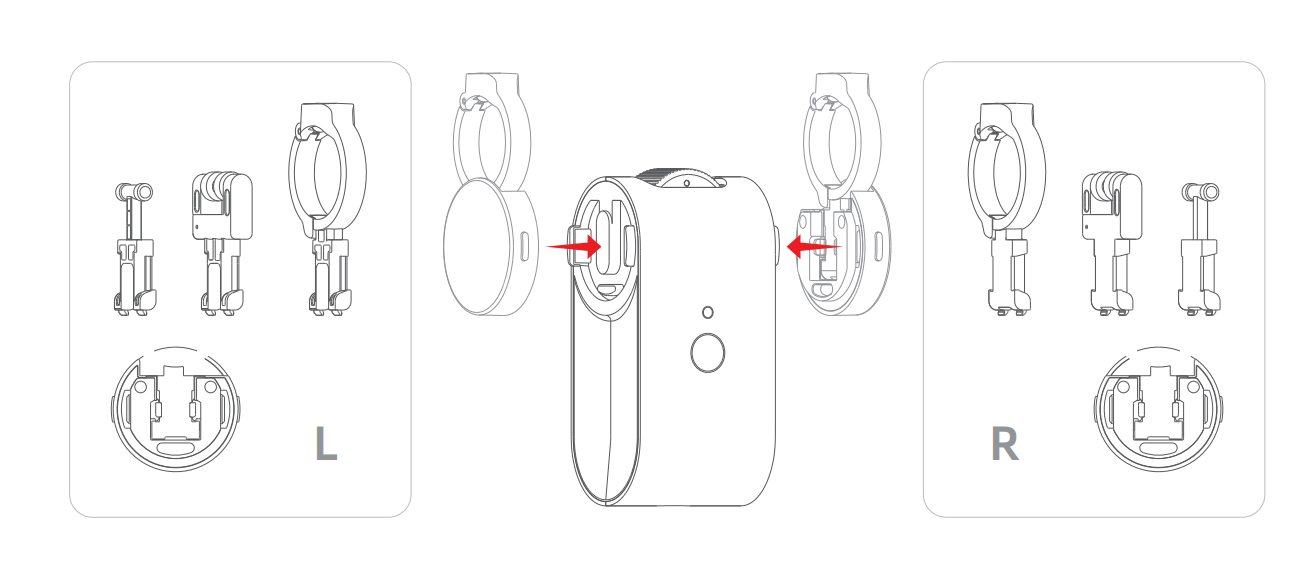

3. Install the selected hook on the "ear" (note: the Roman rod hook and the I-rail hook are left and right)



4. Pull the curtains to full close;

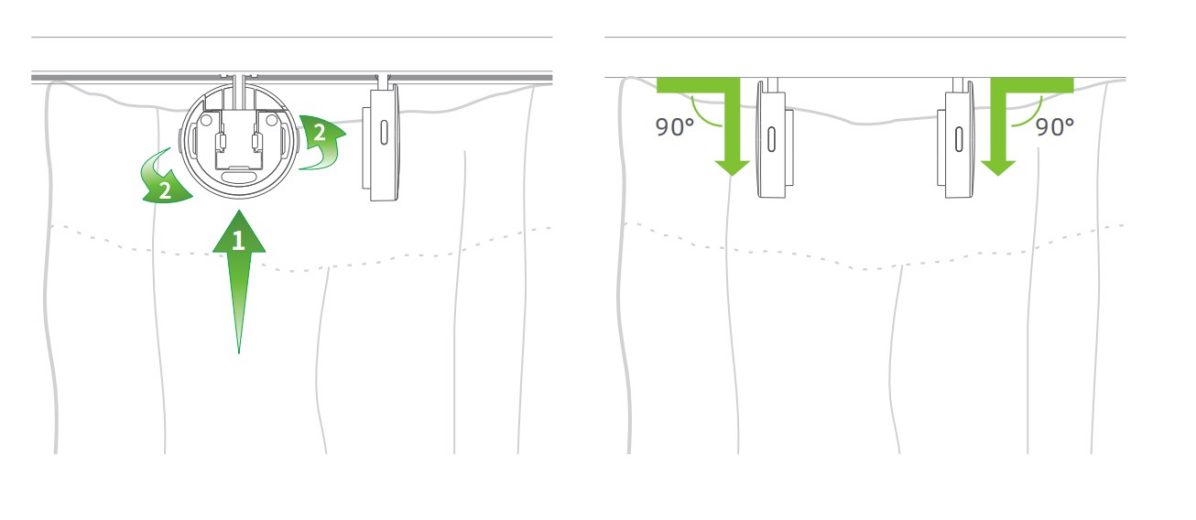

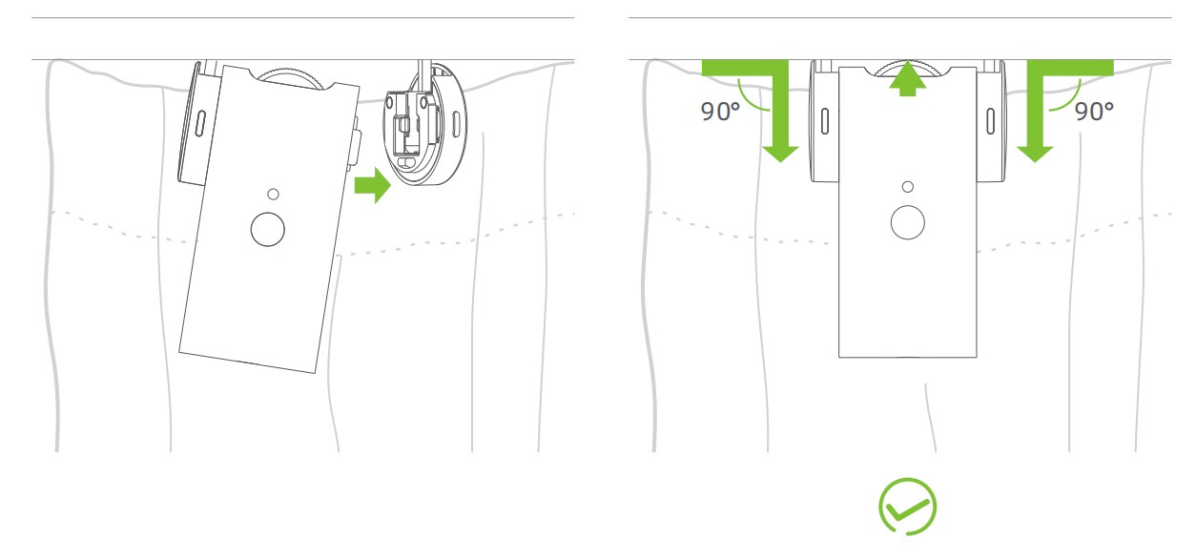

5. Put one of the installed hooks back on the main body, and hang the other directly on the curtain track; (Note: the installation position of CurBot is between the first curtain clip and the second curtain clip on the front)
